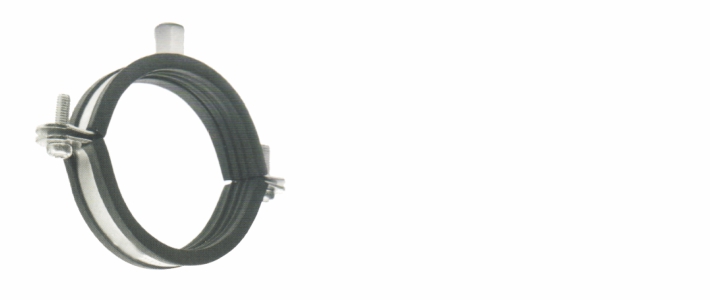

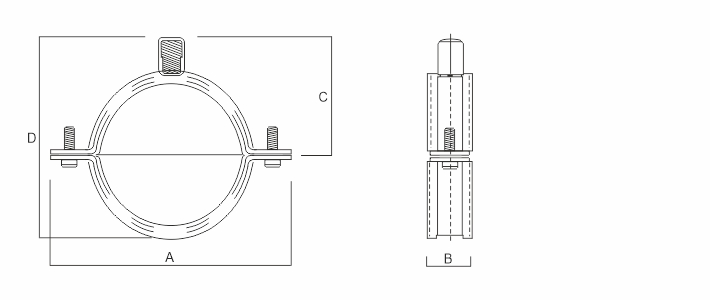

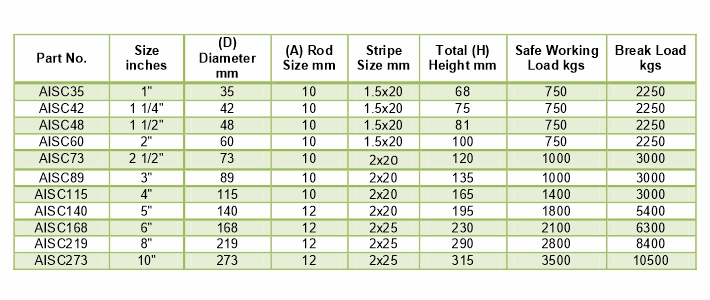

Sprinkler Clamps

Construction Features

One piece clip guarantees a high permissible load.

Mounting without any tools.

Locking device allows easy pre-mounting.

Adjustable in height.

Technical Specifications

Material: Mild Steel

Coating : Zinc Plated

For use in Fire fighting and Sprinkle applications

Designed to meet International Standards

Measurements are subject to 5% tolerance.

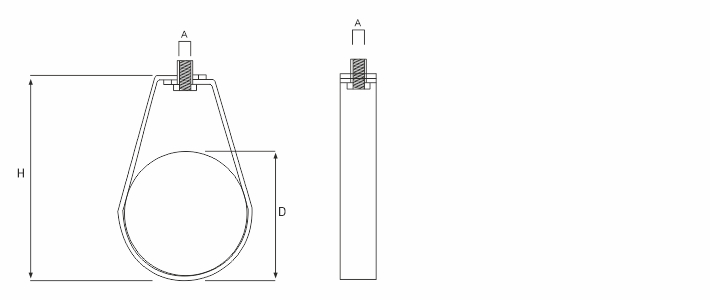

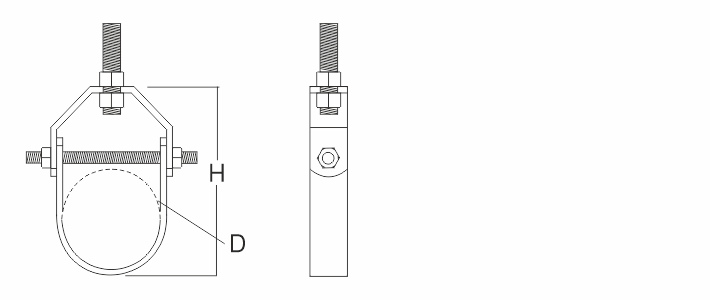

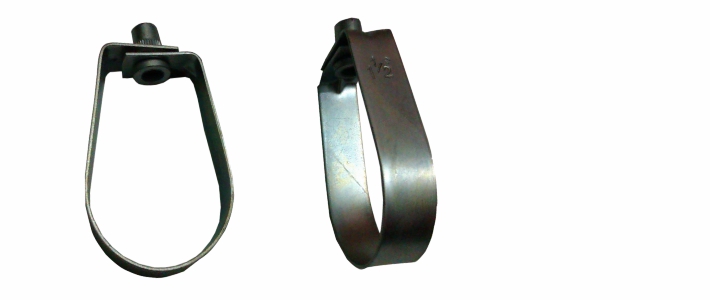

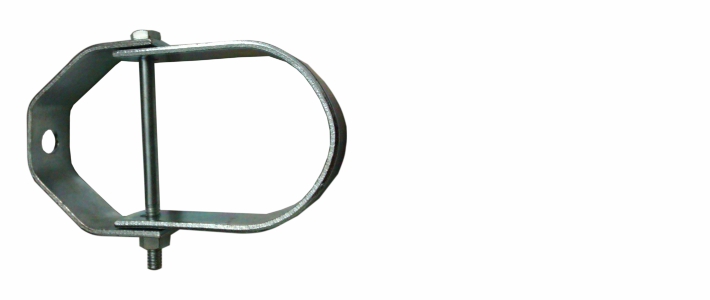

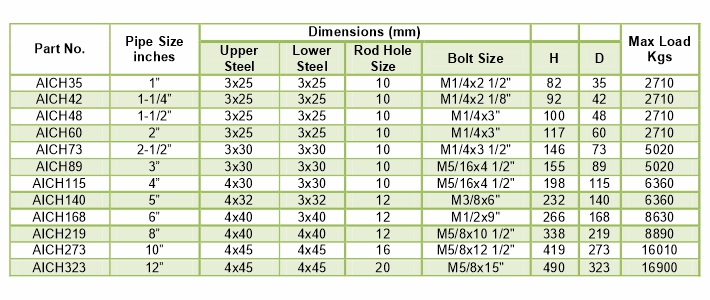

Standard Clevis Hanger

Construction Features

Designed for chilled water pipe work and fire fighting systems

Design permits vertical adjustment of pipe after installation

Hanger load nut above Clevis must be tightened securely

Technical Specifications

Material: Mild Steel

Designed to meet International Standards

Measurements are subject to 5% tolerance.

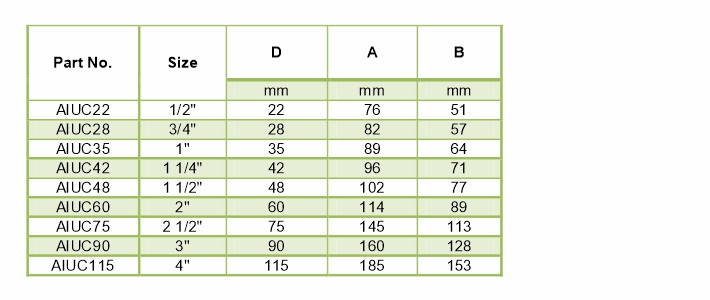

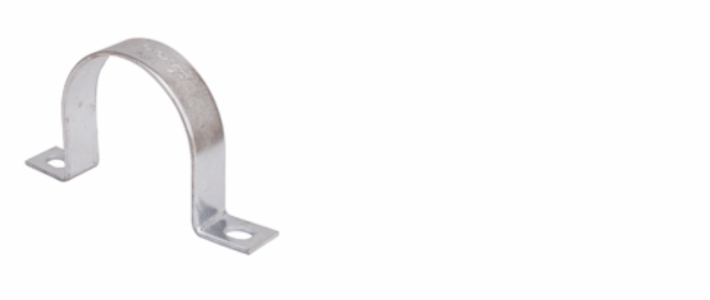

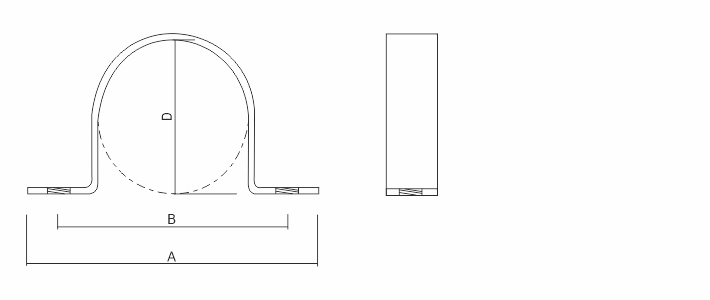

U Clamps

Construction Features

Use to mount plain or insulated pipes

Technical Specifications

Material: Mild Steel with Zinc Plated and G.I.

Designed to meet International Standards

Measurements are subject to 5% tolerance.

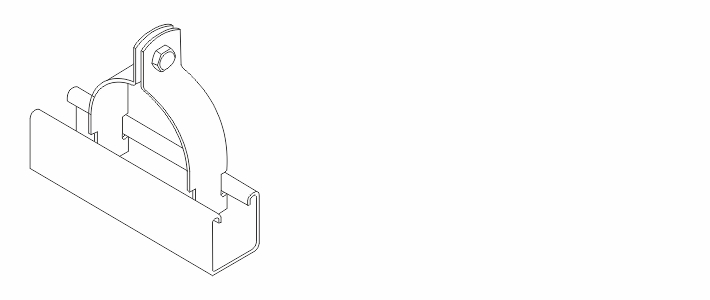

Two Piece Channel Clip

Construction Features

Use for parallel piping mounted on channels

Quick installation design

Technical Specifications

Material: Mild Steel

Designed to meet International Standards

Electrogalvanised as per ASTM B 633 Standards

Hot dipped galvanized can be provided on request

Measurements are subject to 5% tolerance.

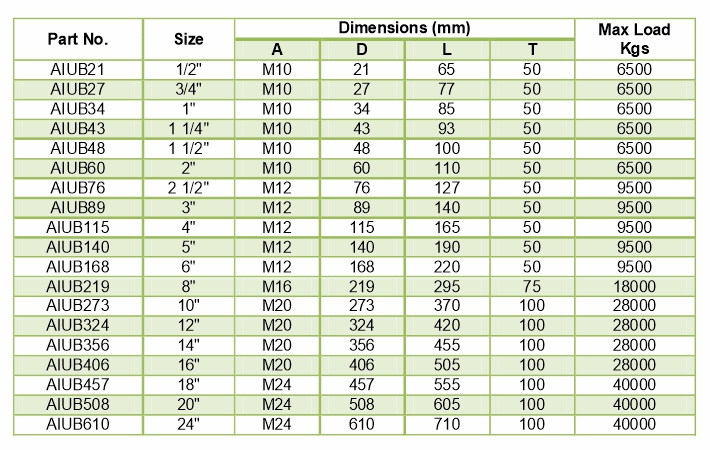

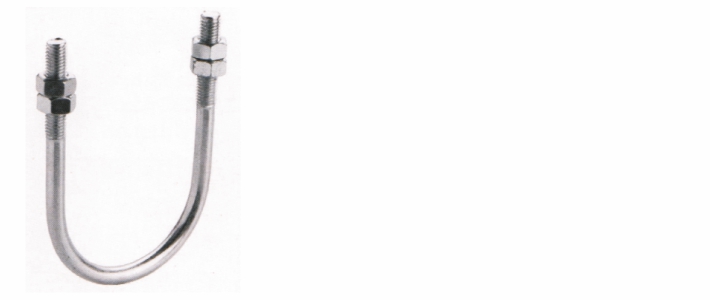

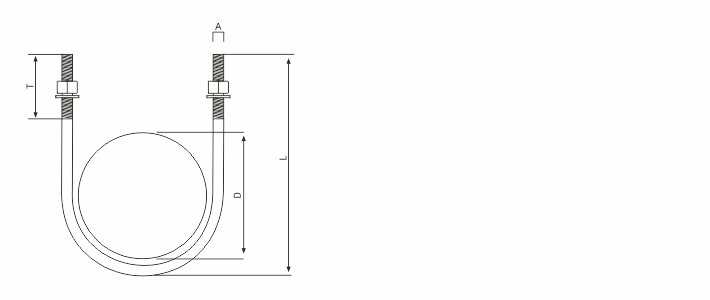

U Bolt

Construction Features

High load capacity due to one piece design

Supplied with two or four nuts

Special U Bolts with longer tangents and threads cab ne furnished on request

Technical Specifications

Material: Mild Steel

Designed to meet International Standards

Hot dipped galvanized can be provided on request

Measurements are subject to 5% tolerance.

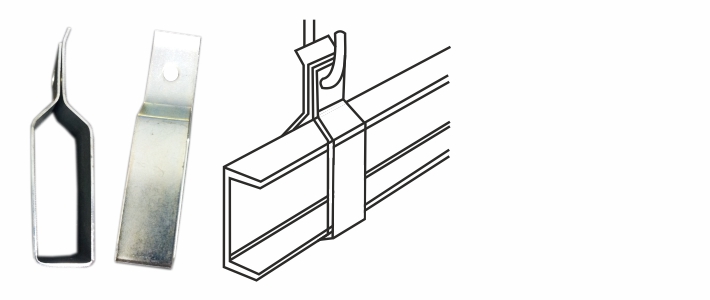

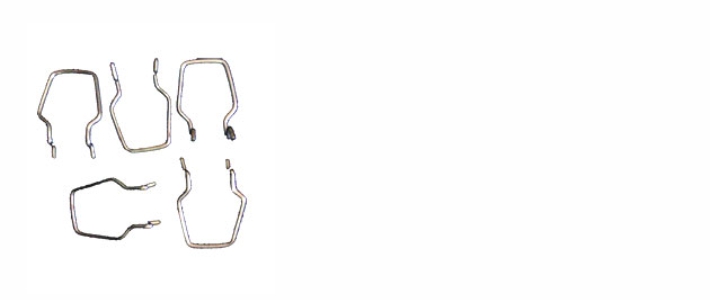

Wire Connecting Clip

We offer furring clip and preformed wire connecting.

Description:2.5mm dia preformed wire clip to fit Furring Chanel and "C"Channel

Material: 2.5mm Hot Dip Galvanised steel wire

Packed: 500 per internal box

Application: Part of Gypsum board framing support system

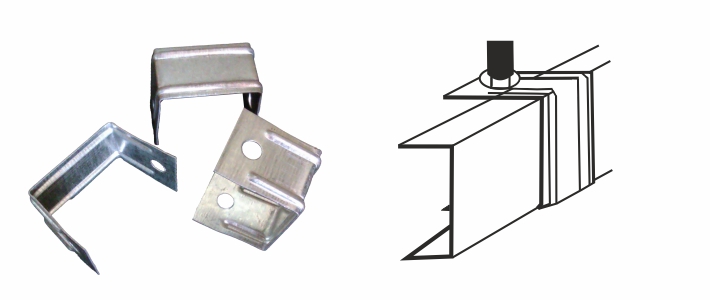

Channel Bracket

Description: 38mm Channel Clamp to hold channel to ceiling by Threaded Rod

Material : Galvanized steel

Double Spring Clip

Description: Double spring adjustable clip ceiling leveling

Material: Spring Steel

Channel Clamp

Description: 38mm channel clamp to hold channel to ceiling by Threaded Rod

Material: Hot dip Galvanized Steel

Double Girder Type EOT Crane

Design and manufactured in accordance with IS 807, IS 3177

Capacity rage: 1 ton to 100 ton

Span: up to 30 mtr.

Duty class: class i/ class ii/ class iii/ class iv

with feature variants i.e.

Twin trolley (double trolley)

Twin hook (double hook)

Multi speed (dual speed)

Cabin operated with master controls

Cabin operated with push buttons

Floor operated through pendent push buttons.

Used for large capacity with large span.

Suitable for large headroom.

Used for high frequency is any motions.

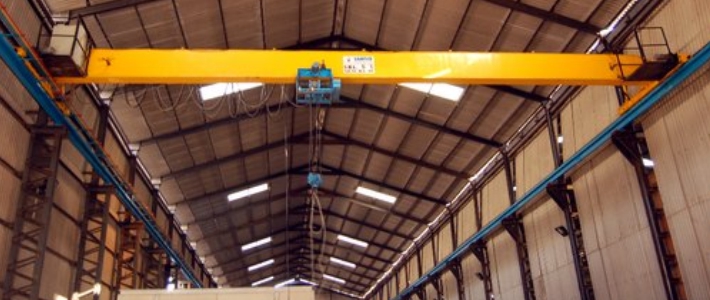

Single Girder Type EOT Crane

Design and manufactured in accordance with IS 807, IS 3177

Capacity rage: 1 ton to 15 ton

Span: up to 30 mtr.

Duty class: class I/ class ii/ class iii/ class iv

with feature variants i.e.

Twin hoist (double hoist)

Twin hook (double hook)

multi speed (dual speed)

Used when law headroom.

Run under I Beam & box beam which is traveling on rail.

Totally used on shop floor area without any obstruction.

Cost effective.

Best solution for longer span.

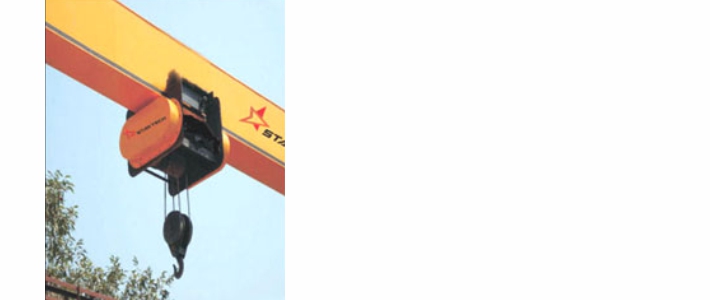

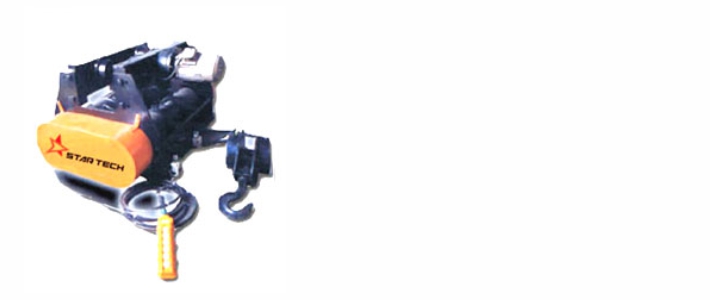

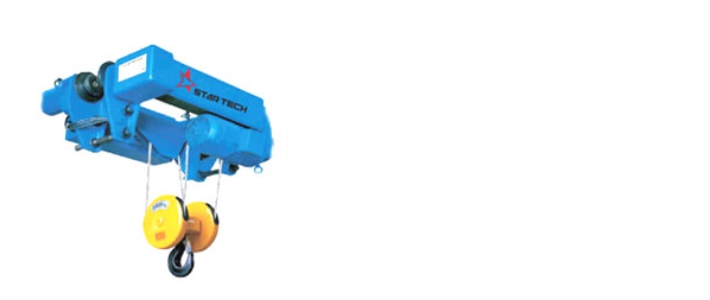

Monorail Hoist

Design and manufactured in accordance with IS 3938

Capacity rage: 1 ton to 15 ton

Span: up to 30 mtr.

Duty class: class i/ class ii/ class iii/ class iv.

With feature variants i.e.

Multi speed (dual speed)

Flame proof application

The special feature are low headroom spur/helical gears running on antifriction ball bearings with oil bath lubrication, Motors conforming to IS 325, "fail to safe" brakes which automatically operates in case of any power failure, tasted wire rope conforming to IS 2266, longed hooks conforming to IS 3815 and push button station operating at step down voltage of 110v, 24v.

Special Dual Hook Type Hoist

Specially developed for Dam Doors operating.

We also manufacture customized Electric winches.

Capacity up to 30 Ton

With Features Variants i.e.

Multi Speed / Dual Speed

Under Slung Crane & Goods Lift

Under Slung Crane

Capacity: Single Girder Type up to 10 Ton

Span: Up to 15 mtr.

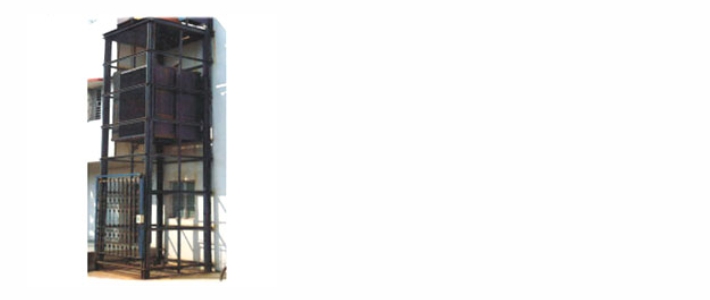

Goods Lift

Capacity: Up to 10 Ton

Height: Up to 30 mtr.

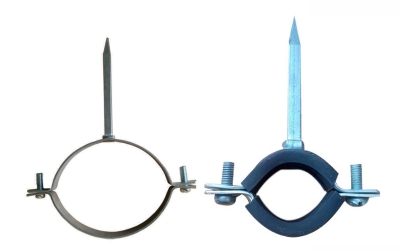

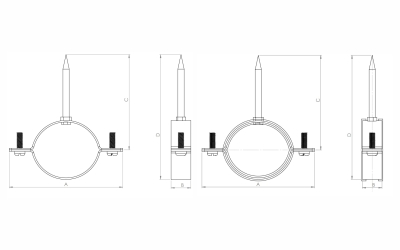

Nail Clamp & Rubber Lined Nail Clamp

Construction Features

Strengthened lock bolts for high load capacity.

Can be used for both horizontal and vertical installations.

Rubber lining for suppression of sound and vibrations.

M6 side screws.

Grooved construction for added strength.

Technical Specifications

Material: Mild Steel

Coating: Zinc Plated

Nail: 6mm / 8mm

Size: 67mm to 82mm

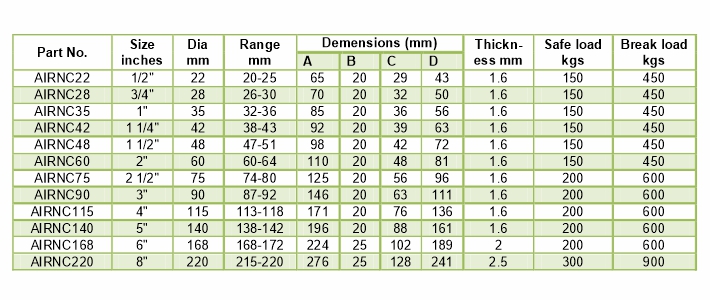

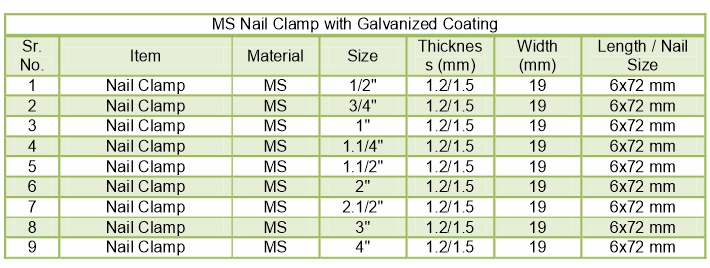

Safe and Break Loads as per Chart

Measurements are subject to 5% tolerance
